Screw and bayonet type 8pin 10pin LTW 10pin plastic wiring connector

FOB Reference Price:Get Latest Price
$1.10 - $3.60 / Piece | 10 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 Negotiable
Samples:
$3.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HZSD
Model Number:
Plastic connector
Application:
Automotive
Type:
DIN
Gender:
male and female, male and female
material:
plastic
contact the body:
adopt high grade copper
Rated voltage:
200V .
Rated current:
10A
No. Of contact:
2-12pin
IP degree:
IP67/IP68
Insert material:
PA66+GF30%
shell material:
PA66+GF30%
color:
black
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week wire connectors types
Packaging & Delivery
Packaging Details
wire connectors types bag or box
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated

Screw and bayonet type 8pin 10pin LTW 10pin plastic wiring connector

Product Description

1. Z108 Circular Waterproof Connectors are available as a receptacle, receptacle connector with cable, and over-molded with cable. The field installable options are available in multiple sizes mini, standard, middle, and large.
2. The Circular Waterproof Connectors offer ≤10mΩ contact resistance, ≤100MΩ at DC500V insulation resistance, and 1000 mating cycle durability.
3. These circular waterproof connectors provide ≥AC100V / 1-minute breakdown voltage.
4. These connectors feature an IP66-68 waterproof rating and are made of UL recognized nylon+GF with copper alloy, gold plated contacts. Operating temperatures range from -40~105ºC or -20~80ºC, depending on type.



Technology parameter
NO.of contacts23456781012
Rated current/voltage10A-200V 10A-200V 10A-200V 10A-125V 10A-125V 10A-125V 10A-125V 10A-125V 10A-125V
Operation limit voltage(AC.V.rms)260260260200200200200200200
Withstanding voltage(AC.V.rms) I minute150015001500150015001500150015001500
Insulation resistance(MΩ MIN.) at DC 500V200020002000200020002000200020002000
Contact resistance (MΩ MAX.) AT DC 1A666333333
Solder cup mouth aperture1.71.71.71.11.11.11.11.11.1
Solder inter diameter1.61.61.6111111

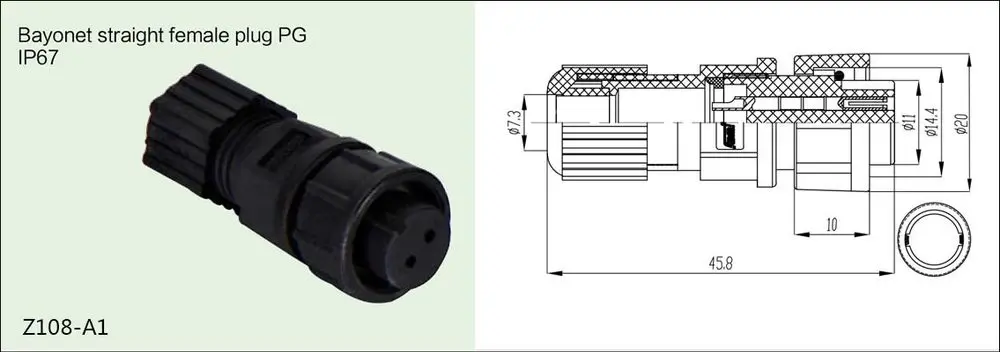

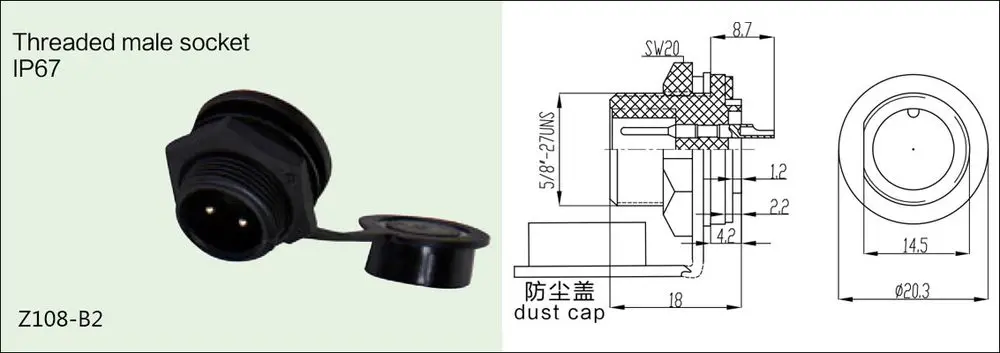

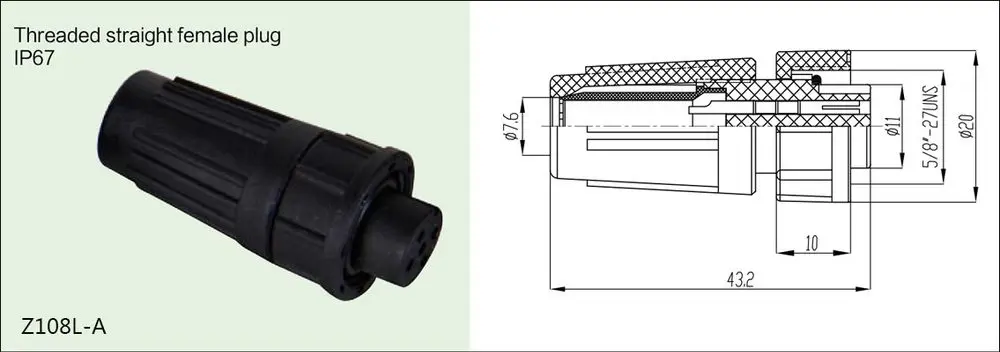

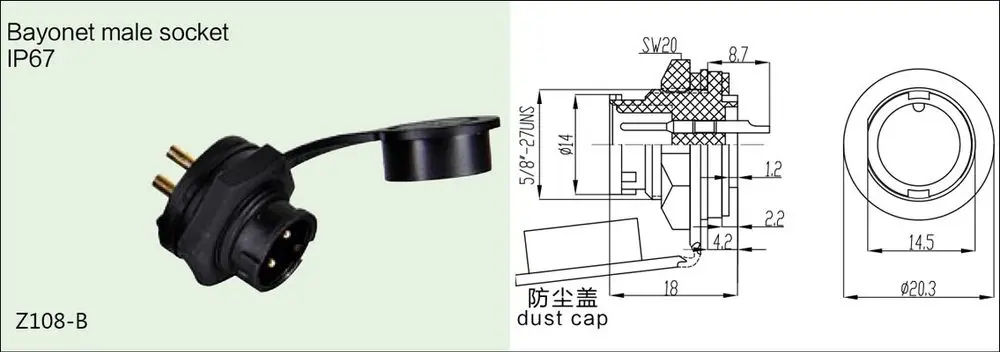

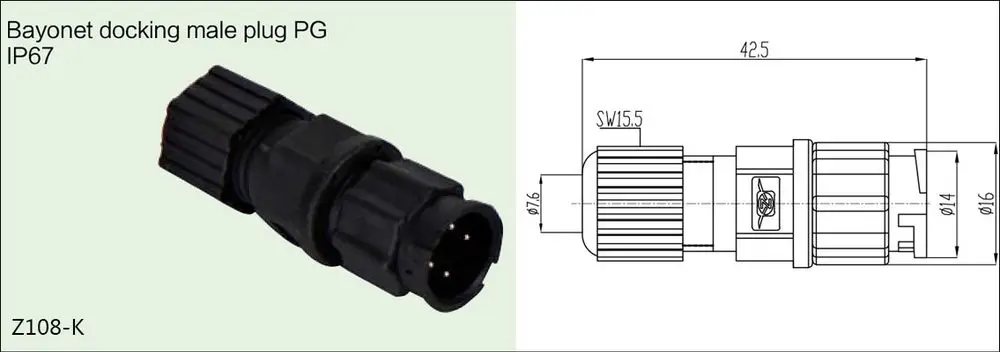

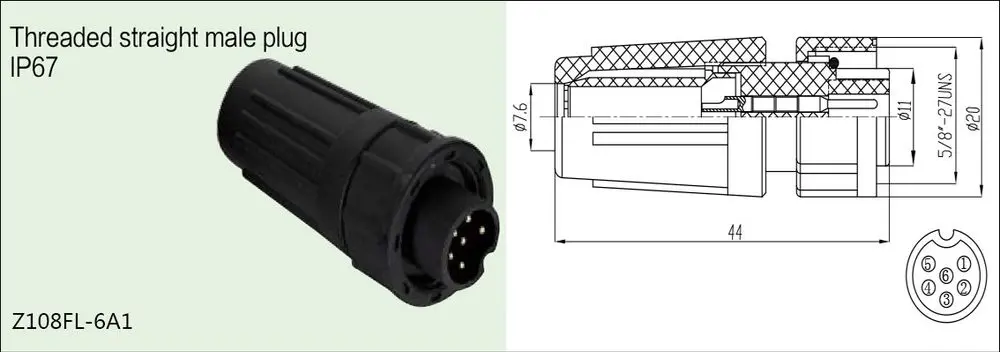

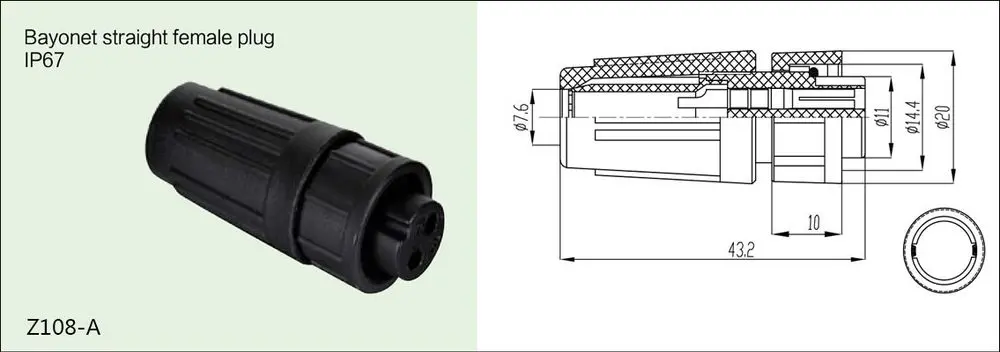

Z108FL-6B.jpgZ108-A1.jpgZ108-A.jpgZ108-B2.jpgZ108-B.jpgZ108FL-6A1.jpgZ108L-A.jpgZ108-K.jpg







Packaging & Shipping

Packaging Details:   LTW waterproof connector and cable will be packed in one small bag and then put in one box.If you need custom package,  we will do as your requirest.



Delivery Detail:  about 7 workdays after payments.

.jpg

Our Services

    We supply M8 M12 cable connector, heavy duty connectors , military connector and other many kinds of connectors. If you need cable harness, we also can supply harness processing, you just need let us now the spec of the cable and the connectors, we will give you a cable harness drawing.
